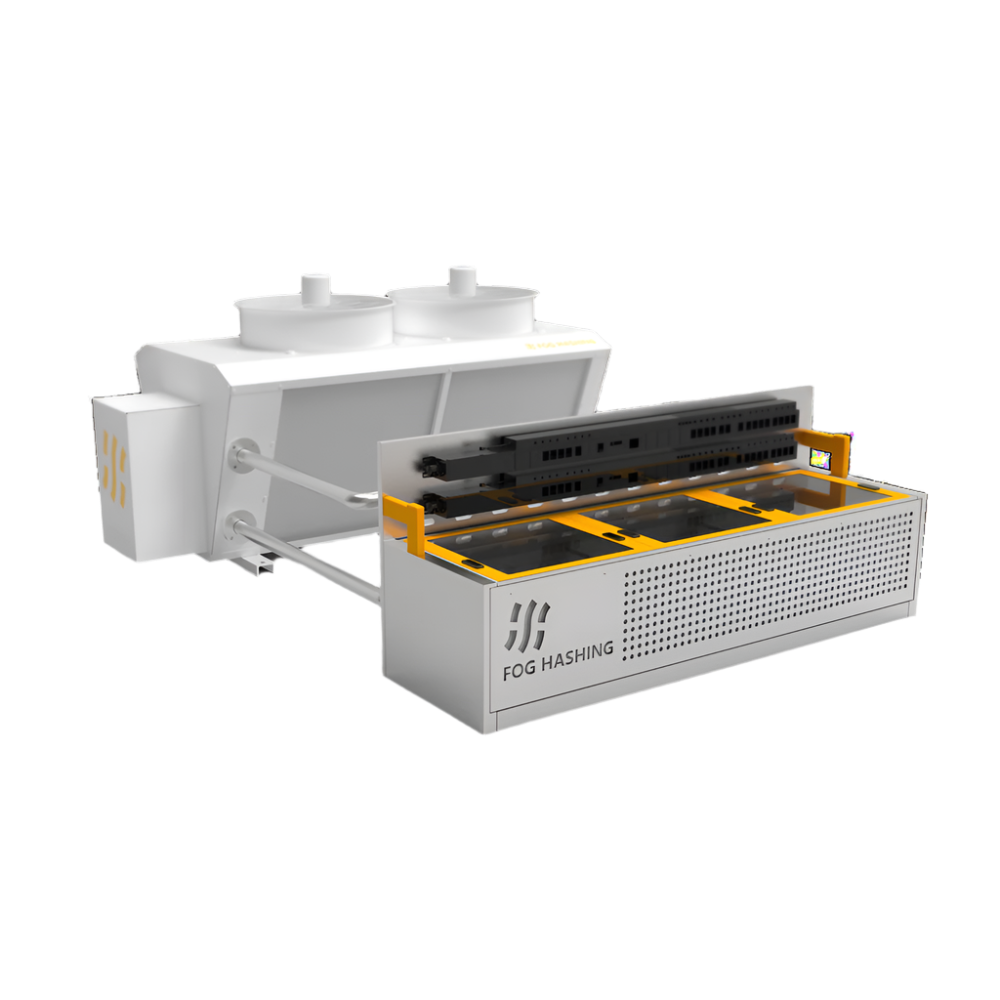

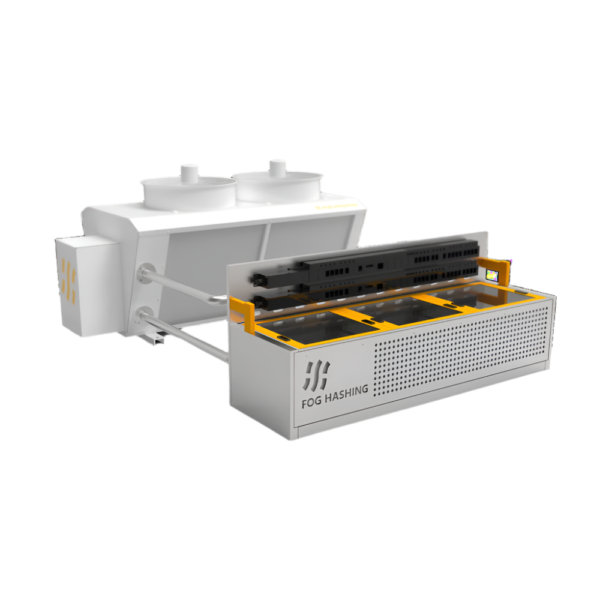

System Overview
Single-loop circulation Integrates smart PDUs and networking Integrates circulation pumps and piping
Supports either dry cooler (by default) or closed water cooling tower
Designed for independent deployment
One B24D with one dry cooler, Supports up to 24 Antminers or 30 Whatsminers
All-in-one design with built-in PDUs, network switches, sensors, and controllers
High density and space saving
Specifications
| B24D Tank | |
| Outer size | 2486*746*530mm |
| Input voltage | 3-phase 350-480V 50/60Hz |
| Output voltage | Single-phase 200-277V 50/60Hz |
| Cooling capacity | 120kW@35°C |
| Operating temp | -10°C – 40°C |
| N.W | 172kg |
| Coolant volume | 750L |
| Inlet and outflow temperature | 45/65°C |
| Power load (max) | 120kW |
| Capacity | 24 Antminers or 30 Whatsminers |
| External cooling | Dry cooler/water cooling tower |
| Dry Cooler (EC Fan) | |
| Outer Size | 2186*1874*2100 |
| G.W. | 769kg |
| Input Voltage | 3-phase 350-480V 50/60Hz |
| Cooling Capacity | 120kW@35°C |
| Max Power Load | 4kW |
| Air Volume(m³/h） | 38299 |
| Noise | 65dB(A) (@25°C,16m) |
Note: About the transportation of liquid cooling equipment
For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
