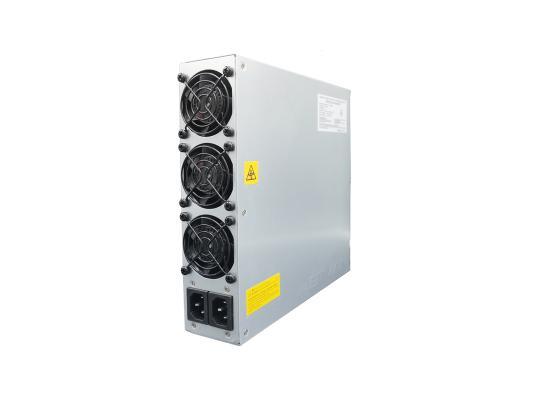

APW12_12V-15V EMC （b Version）

$178.00

For S19,S19 Pro,T19,S19i,E9,E9 Pro,D7,Z15 Pro

Note:

This power supply is version b，which can replace a and b（Can not replace c,d,e&f etc.）version after your miner is updated the newest firmware.

You can check the exact version at the product tag which is on the side of the power supply and find the newest firmware accordingly from official website: Firmware Download

There are many versions of this power supply, it is recommended to consult customer service before purchasing>>Contact now

Product Glance
Out1
DC Voltage 12V-15V
Rated Current(220V input) 208A (when 15V can upto 233A~240A)
Ripple & Noise <1%
Line Regulation <1%
Load Regulation <1%
Setup Time <2S
Short Circuit Protection >10mS
Detailed Characteristics
Out2
DC Voltage 12.3V
Rated Current(220 V input) 15A
Ripple & Noise <1%
Voltage Accuracy 12.2V—12.4V
Line Regulation <1%
Load Regulation <1%
Setup Time <2S
Short Circuit Protection >10mS
Input
Voltage Range 200-240V AC
Frequency Range 47-63Hz
Power Factor >0.99(full load)
Leakage Current <1.5mA（220V 50Hz）
Protection
Low-voltage Input 80-89V AC
Output Short Circuit Yes
Overheat Protection Yes
Over-current Output 291A-350A （protection value varies under different voltage）
Environment
Operating Temperature -20-45℃
Operating Humidity 20%-90%RH（non–condensing）
Altitude < 2000m
Structure
Dimensions 254.6mm*251.6mm*63mm
Net Weight 3.6kg
Cooling System Forced‐air cooling
Noise 45dBA
